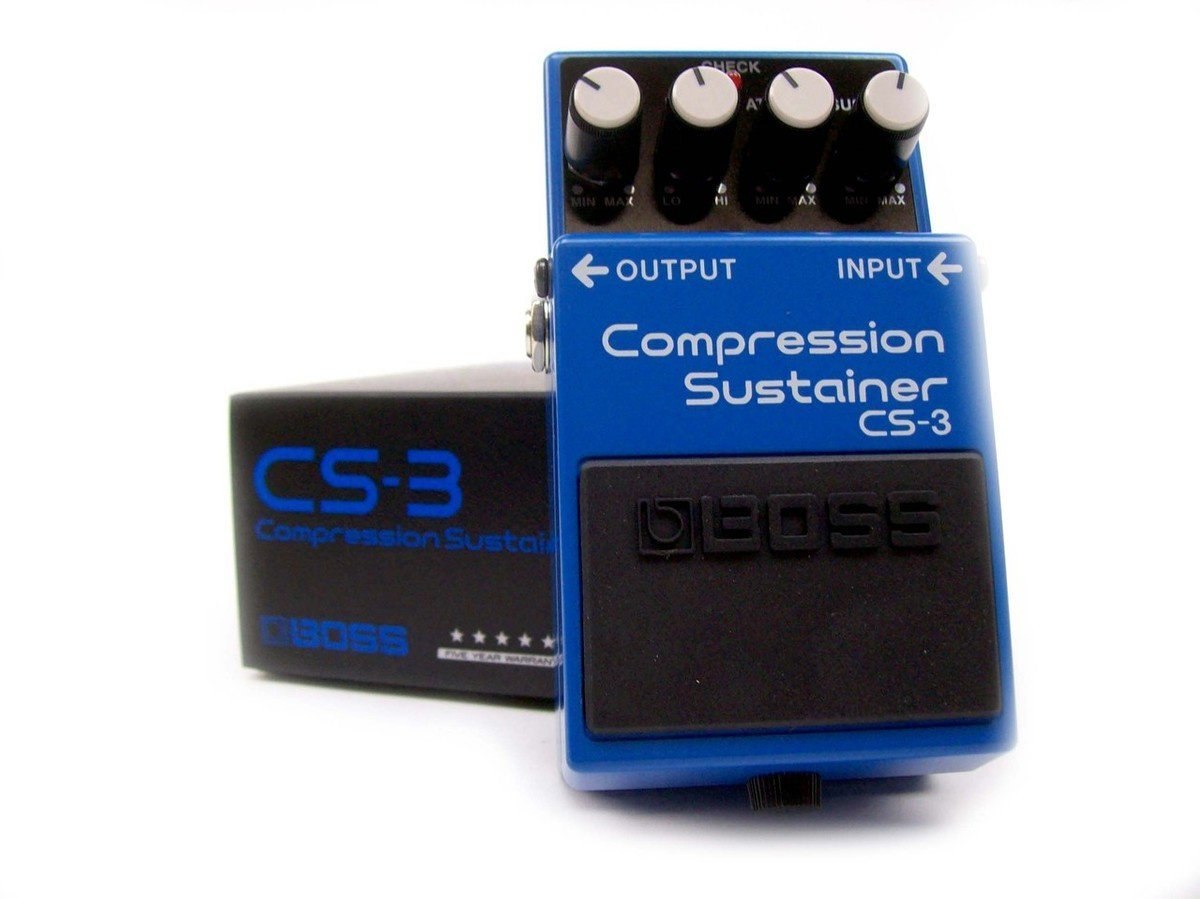

Boss CS-3 Compression Sustainer Pedal

The CS-3 Compression Sustainer pedal compresses louder signals while boosting lower signals, providing smooth sustain without degrading the original sound quality. This is the perfect pedal for guitarists and bassists who want to sound their best.

Features

• Compact compression/sustainer pedal with high-quality circuitry
• Compresses loud signals and boosts softer signals for a smooth overall sound
• Onboard Level, Tone, Attack and Sustain controls for precise tonal shaping
• Low-noise design for super-quiet operation
• BOSS five-year warranty

Specs

Nominal Input Level:  -20 dBu

Input Impedance:  1 M ohm

Nominal Output Level:  -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance10 k ohms or greater

Bypass

Buffered bypass

Controls

• SUSTAIN knob
• ATTACK knob
• TONE knob
• LEVEL knob
• Pedal switch

Indicator

CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

• Carbon-zinc battery (9V, 6F22)
• Alkaline battery (9V, 6LR61)
• AC adaptor (PSA series: sold separately)

Current Draw:  20 mA

Expected battery life under continuous use

Carbon: Approx. 10.5 hours
Alkaline: Approx. 26 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Dry battery/9 V type (6F22)Options (sold separately)AC adaptor: PSA series

SIZE AND WEIGHT

• Width:  73 mm/2-7/8 inches
• Depth:  129 mm/5-1/8 inches
• Height:  59 mm/2-3/8 inches
• Weight:  380 g/14 oz

* 0 dBu = 0.775 Vrms

* The specifications are subject to change without notice.
